Creality Hi 3D Printer

PRODUCT SPECIFICATIONS：

Build Volume：260×260×300 mm

Frame: Aluminum Alloy

Printing Speed: 300 mm/s typical speed; 500 mm/s max speed

Acceleration:≤12000 mm/s²

3D Printer Dimensions: 409 × 392 × 477 mm

Printer Package Dimensions: 650 × 460 × 240 mm

Combo Package Dimensions: 650 × 460 × 560 m

3D Printer Net Weight: 8.75 kg

Combo Net Weight:13.31 kg

3D Printer Gross Weight:11.58 kg

Combo Gross Weight: 19.14 kg

Build Plate: Two-sided epoxy flexible build plate

Heatbed Temperature: ≤ 100 ℃

Part Cooling Fan: Closed-loop Control

Hotend Fan: Closed-loop Control

Extruder Direct : drive extruder

Hotend: All-metal & integrated

Extruder Gears: Steel

Nozzle: Durable tri-metal nozzle

Nozzle Temperature: ≤300℃

Nozzle Diameter (Default): 0.4 mm

Nozzle Diameter (Optional): 0.6 mm、0.8 mm

Filament Cutter: Built-in

Filament Diameter: 1.75 mm

Monitoring Camera : Yes

Filament Run-out Sensor: Yes

Filament Tangle Detection: Yes

Auto Filament Relay: Yes (with CFS)

Supported Filaments: Hyper-PLA/PLA/PETG/ABS/PLA-CF

Display Screen: 3.2″ color touch screen (320×240px)

File Transfer: USB drive/WiFi

File Storage: 8GB

User Interfaces: Touch screen, Creality Cloud App, PC program

MCU: Dual-core ARM Cortex-A7 microprocessor

Slicing Software: Creality Print 5.1 and newer versions

Supported Languages: English, German, Spanish, French, Italian, Portuguese, Turkish, Russian, Japanese, Chinese

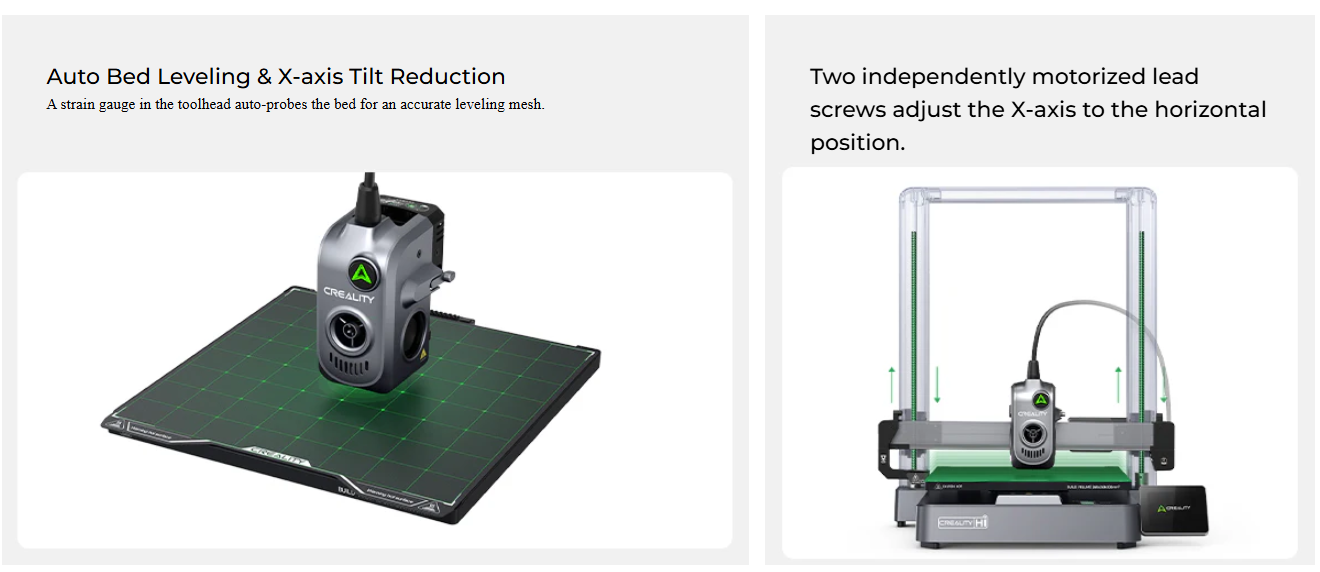

Leveling Method: Leveling with strain gauge

XYZE Motor: Step-servo motor for X/Y axis; step motor for others

Input Shaping (G-Sensor): Yes

Lighting Kit: Yes

CFS Connection: ≤ 4 (Separate power source required for 2 and more units)

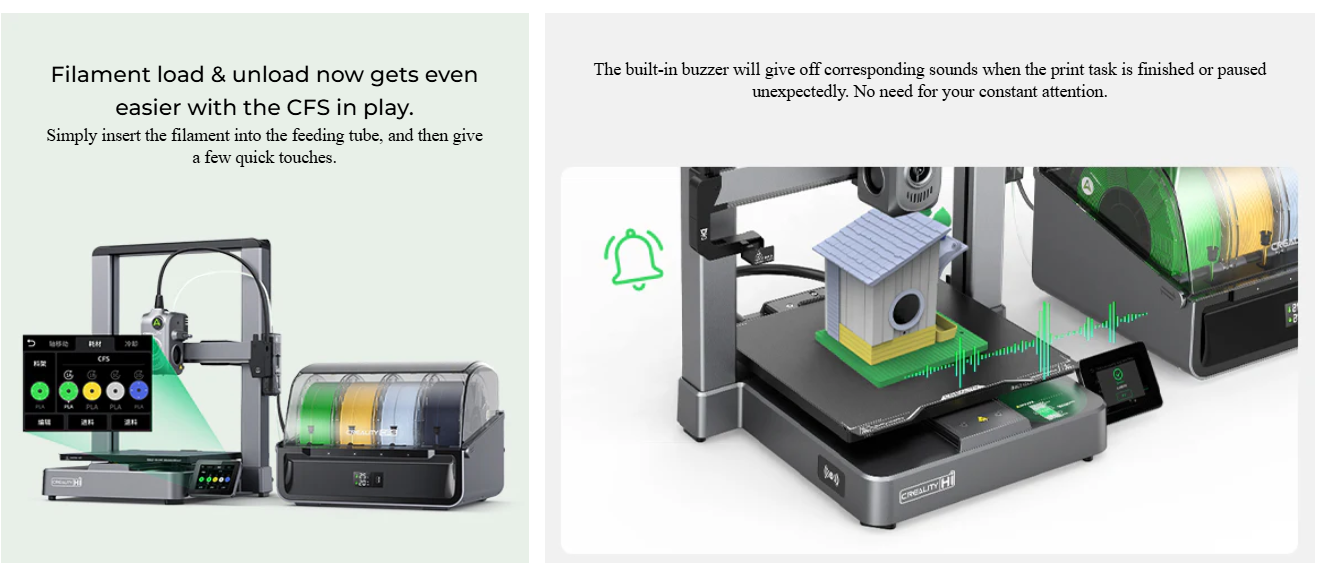

CFS SPECIFICATIONS

Product Dimension: 379 × 314 × 276 mm

Product Net Weight: 4.56 kg

Input Voltage: DC 24V

Rated Power 20W

CFS Connection: ≤ 4

RFID Filament Recognition：Yes

Supported Filaments：PLA/PETG/ABS/ASA/PET/PLA-CF *Not compatible with flexible TPU, damp BVOH/PVA, or warped cardboard spools.

Display Screen Digital ：screen showing temperature and humidity
